Specifications:

Throat Diameter:1.4 inch(36 mm)

Diaphragm Diameter:2.95 inch(75mm)

Nominallmpedance:8 Ohm

Voice Coil DC Resistance:5.8 Ohm

Power Handling:100 Wat

Sound Pressure Level (Loaded with 90 x 40 Horn):110 dB

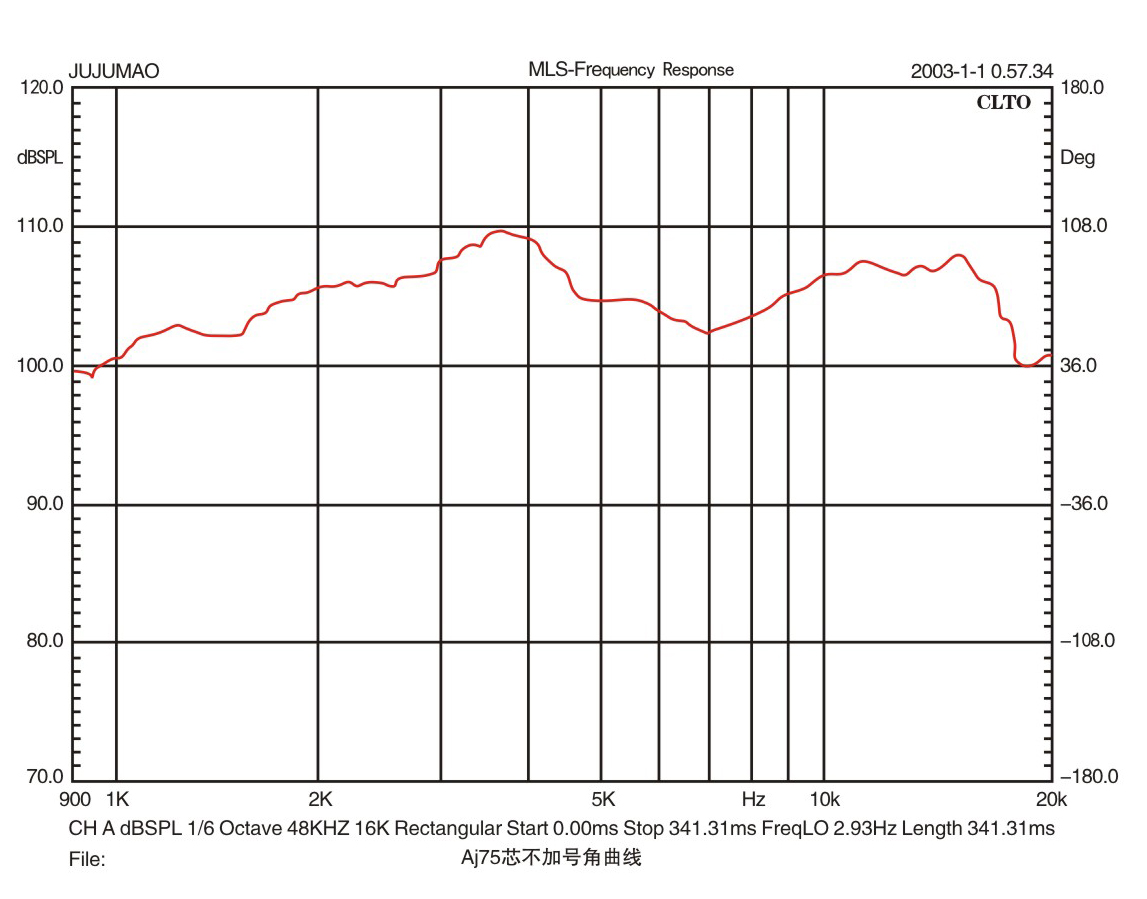

Frequency range:800-20000HZ

Mounting Type:Bolt-on

Magnet Type:Neodymium

Magnet Size:24.5X8mm 13Pcs

Diaphragm Material:Titanium

Recommended Crossover:1kHz or higher (12dB/0ct siope)

Net Weight:2.18kg/pc

Gross Weight:17.96kg/ctn 8pcs/ctn

Packing Dimension WxDxH(mm):270x270x160mm
